Production managers often trace their most frustrating bottlenecks right back to the start of the line. Jammed single-pass printers, unstable pallet shipments, and folding carton misalignments frequently originate from poor initial sheet cutting and stacking. Handling variable substrates feels unpredictable when tension, dust, and material curl go unmanaged. Micro-defects at the sheeting phase quickly snowball into massive feed interruptions and costly transit damage. Upgrading your line transforms this chaotic processing into a highly standardized, predictable workflow. Doing so directly improves equipment uptime and elevates overall print quality across the board. In this guide, we will explore why evaluating capital equipment requires looking past basic speed metrics. You will discover how clean cuts, automated alignment, and smart integration capabilities ultimately dictate the success of your entire packaging line.
Success Criterion: Consistent sheeter output quality (clean edges, static-free delivery) is non-negotiable for maximizing uptime in high-speed single-pass and folding carton lines.
Core Evaluation: A reliable sheet stacking system must feature automated jogging, static elimination, and dynamic overlap control to ensure perfectly square, jam-free pallets.
Risk Mitigation: Addressing stack stability at the sheeting stage reduces in-transit damage and eliminates secondary manual handling prior to downstream paper finishing.
ROI Driver: Upgrading equipment should be justified by reduced substrate waste, faster changeovers, and lower operator intervention rates.
Micro-defects at the sheeting stage seem insignificant at first glance. However, they rapidly cascade into macro-level production bottlenecks. A slight skew during cutting does not stop the sheeter itself. Yet, it causes absolute havoc downstream. Operators often ignore a millimeter of variance, assuming the machinery will naturally correct it. They shouldn't. This tiny error compounds when sheets hit high-speed feeders, causing instant shutdowns.
Dull blades create significant problems for your sheeter output quality. As knives wear down, they stop cutting cleanly and begin crushing the paper fibers. This generates microscopic dust particles. Poor dust extraction systems let this debris settle directly on the substrate. The contaminated paper then enters single-pass digital printers. Dust clogs sensitive printer nozzles almost instantly. This leads to streaks, banding, and entirely rejected print runs. Clean substrates are fundamentally required for modern digital printing.
Misaligned edges trigger an expensive ripple effect of paper jams. High-speed die-cutters rely on perfect sheet registration to operate safely. Folding carton gluers demand perfectly square edges to fold properly. When misfeeds occur, the entire line stops abruptly. Operators must clear the jam manually. They then recalibrate the feeder and restart the run. Packaging facilities routinely lose hours of daily production to these avoidable jams. Quantifying this downtime reveals massive financial leaks in your operation.
Furthermore, poor load stability creates severe palletizing and transit risks. This often stems from uneven air distribution within the paper stack itself. Trapped air creates a spongy, unstable pallet. Shifts happen easily during palletized print shipments. Entire loads can lean or collapse entirely in transit.
Lateral Shifting: Sheets slide off center when turning corners during forklift transport.
Edge Crushing: Strapping bands dig into misaligned sheets, destroying the usable margins.
Moisture Penetration: Uneven stacks leave gaps where warehouse humidity easily penetrates the paper edges.
We must transition away from symptom management. Adding secondary manual jogging stations only masks the real issue. You need a high precision paper sheeting machine to fix the core problem. Precision equipment stops errors before they start. Evaluating these machines requires looking closely at their mechanical capabilities.
Evaluating cutting technology is critical for heavy board processing. Twin-rotary systems vastly outperform single-rotary synchronous cutting. In a twin-rotary setup, two knife drums rotate simultaneously. They slice the web exactly like a pair of scissors. This precise knife synchronization ensures dust-free, square cuts. They handle varying caliper boards effortlessly. Conversely, single-rotary systems use one moving knife against a fixed blade. They often crush the board edge, creating dust and angled cuts.
Feature Matrix | Twin-Rotary Cutting Technology | Single-Rotary Cutting Technology |
|---|---|---|
Cutting Mechanism | Two synchronized rotating knife drums | One rotating knife against a stationary bed knife |
Cut Quality | Clean, scissor-like action; minimal dust | Higher risk of edge crushing and dust generation |
Board Caliper Capacity | Excellent for thick, heavy-duty substrates | Struggles with very thick boards; limits speed |
Maintenance Load | Requires precise synchronization, but blades last longer | Frequent bed-knife adjustments needed |
You must maintain closed-loop web tension control. Tension variations cause immediate sheet length inaccuracies. We call this phenomenon "creeping." Creeping destroys stack uniformity completely. Load cells measure the web tension constantly. Automated brakes adjust the roll resistance dynamically. They adapt instantly to changing roll diameters, keeping the web perfectly tight.
Roll memory causes substrates to curl aggressively as they near the core. Multi-stage decurlers neutralize this memory. They bend the web over small, adjustable breaker rolls. This stretches the paper fibers just enough to lay flat. Decurling is a mandatory feature. It prevents edge-lift in the final stack. Flat sheets feed perfectly into printers. Curled sheets crash immediately.

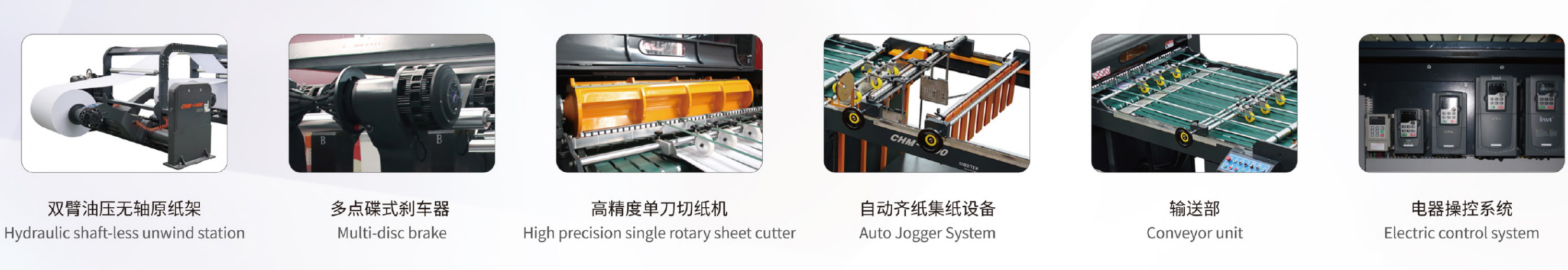

A robust sheet stacking system requires specific anatomical features. You cannot rely on gravity alone to build a perfect pallet. High-speed delivery demands controlled physics. Breaking down the anatomical requirements helps you evaluate vendors accurately.
Sheets entering the stacker travel incredibly fast. Uncontrolled entry creates absolute chaos. Aerodynamics and overlap carriages manage this speed. Overlapping carriages catch the sheets and slow them down safely. They create a shingled stream of paper. This overlapping action decelerates the sheets, preventing violent edge-crashing against the backstop. Furthermore, it gently squeezes out trapped air pockets before the sheets settle.
You need automated vibratory jogging and squaring mechanisms. Pneumatic or motorized plates tap the stack continuously from the front and sides. They achieve perfect edge alignment instantly. Manual operator pat-downs introduce human error and fatigue. Automated joggers eliminate this variable completely. They ensure the pallet builds perfectly straight from the first sheet to the last.
Fast-moving paper naturally generates static electricity. Sheets cling together fiercely when statically charged. You must place anti-static bars strategically across the delivery section. High-capacity ionizers neutralize the charge just before the sheets drop. This ensures smooth separation during subsequent feeding units.
Multi-tiered pallets need immense structural integrity. Automated tier sheet (slip sheet) dispensers insert rigid dividers at programmed intervals. They build structurally sound, multi-tiered loads. These pallets hold together better. They are ready for immediate transport without needing intensive manual wrapping first.
Vacuum Braking Belts: Grips the tail edge of the sheet to ensure a flat, controlled drop.
Motorized Side Joggers: Continuously align the lateral edges to millimeter precision.
High-Frequency Ionization Bars: Eliminates static cling across various substrate types.
Automatic Lowering Pallet Table: Drops seamlessly as the stack grows to maintain a constant drop height.
You must connect the stacking output directly to downstream demands. Corrugated packaging lines require specific structural tolerances. Heat transfer screen printing demands perfectly flat, aligned material. Scalability means the stacker adapts to these varying needs automatically. You configure the recipes based on where the pallet goes next.
We define strict acceptable alignment deviations for single-pass integration. Usually, you need paper stack alignment variances below 1mm. Hitting this exact metric allows you to safely bypass secondary jogging stations. You feed the pallet straight from the sheeter into the digital printer. This eliminates secondary handling entirely. It saves massive amounts of time and protects the paper edges from accidental damage.
You can standardize operations rapidly. Following a strict framework lets you utilize exact stack dimensions across the facility. This impacts pallet sizing, wrapping protocols, and logistics planning.
Week 1 (Baselining): Run your most common substrates and record the exact natural variance of the unadjusted stacker.
Week 2 (Calibration): Adjust the multi-stage decurlers and overlap carriages until the edge variance drops below the 1mm threshold.
Week 3 (Standardizing Pallets): Order standardized wooden or plastic pallets that exactly match the newly squared output dimensions.
Week 4 (Process Lock-in): Save all successful tension and jogger settings into the HMI as locked digital recipes for operators.
We avoid making unrealistic claims of "100% jam-free" production. Variables always exist in manufacturing. Substrates change, and humidity fluctuates. Instead, focus on reducing feed-interruption variables to verifiable manufacturer tolerances. By holding alignment strictly under 1mm, you achieve predictable, highly reliable outputs. This builds operator trust.
Rollouts require a highly pragmatic approach. You cannot simply drop new precision equipment onto the floor and expect instant results. Planning dictates your success. Understanding the physical and human realities of implementation mitigates major risks.
Address physical space requirements first. Automated pallet-changing systems consume significant floor space. Reject gates require room to discharge defective sheets safely away from the main stack. Map your workflow carefully. Leave adequate aisles for forklift access. A machine that creates perfect stacks becomes useless if a forklift cannot safely extract the pallet.
Operators face a noticeable learning curve. They transition from mechanical adjustments to HMI (Human-Machine Interface) recipe-driven changeovers. Touchscreens replace wrenches. You must provide comprehensive training. Digital recipes save massive amounts of setup time. However, operators must trust the computer instead of manually tweaking the machine. Change management becomes just as important as machine installation.
High-speed equipment requires strict preventative maintenance. Pneumatic joggers, vacuum belts, and high-speed knives naturally wear down. You must maintain day-one tolerances to protect your downstream paper finishing equipment. Schedule regular knife sharpening. Check pneumatic air lines for micro-leaks weekly. Clean the anti-static bars to ensure they neutralize charges effectively.
Best Practice: Always test new substrates at 50% speed to dial in tension settings before ramping up to maximum throughput.
Common Mistake: Ignoring dust accumulation near the rotary knives. Dust buildup directly alters the cutting gap and degrades blade life rapidly.
Common Mistake: Skipping the decurler adjustment for "slightly" curled rolls. Even minor curl causes massive headaches in automated stacking.
Evaluating and shortlisting precision equipment follows a strict logical path. Excellent cut quality dictates your stack alignment. Perfect stack alignment ultimately enables flawless system integration. You must prioritize clean, dust-free edges and perfectly square pallets over raw running speed. Speed means nothing if the resulting pallet jams the printer.
When vetting vendors, demand live demonstrations. Send your specific, most difficult substrates to their testing facility. Heavily curled rolls or static-prone synthetic materials reveal the real truth about a machine's capabilities. Watch how the automated joggers handle these problematic materials at full production speeds.
Your immediate next step requires internal data collection. Review your internal downtime logs immediately. Quantify the exact financial impact of your current stacking inefficiencies. Calculate the hours lost to clearing jams and re-cutting damaged sheets. You need this hard data to justify the upgrade before formally requesting equipment RFQs.
A: Industry standards typically dictate an acceptable variance of +/- 1mm to 2mm. The exact requirement depends heavily on your specific feeder type. Precision vibratory joggers and overlap carriages achieve this exact tolerance. They mechanically square the sheets as they settle, ensuring seamless, jam-free integration into high-speed folding carton lines.
A: Tier sheets, also known as slip sheets, act as structural dividers within a large paper stack. They distribute the downward weight evenly across the entire pallet. By physically binding independent columns of paper together, they alter the physics of the load. This drastically reduces lateral shifting and prevents stack collapse during transit.
A: Yes, retrofitting is often physically possible. However, older legacy cutting units frequently limit integration realities. If the older sheeter suffers from a severe cut-quality bottleneck or low processing speeds, a new stacking system cannot overcome those fundamental upstream flaws. A full system replacement often yields a better return on investment.
A: Precision sheeters prevent jams by eliminating the root causes of misfeeds before the stack even enters the printer. They utilize twin-rotary knives to eliminate cutting dust, keeping substrates exceptionally clean. Furthermore, multi-stage decurlers and anti-static bars precisely neutralize curl and static cling, ensuring individual sheets separate perfectly inside the printer's feeder.
